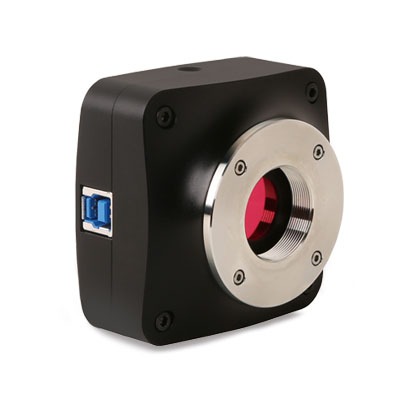

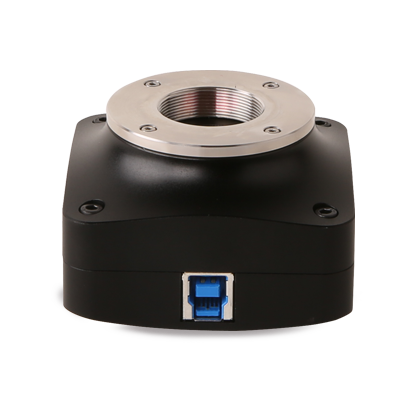

E3ISPM系列顯微相機采用 Sony 索尼 Exmor,Exmor R, Exmor RS 背照式 CMOS 傳感器， EXmor 系列 CMOS 傳感器采用雙層降噪技術，具有超高的靈敏度以及超低噪聲。
E3ISPM系列顯微相機集成了12位的超精細硬件圖像信號處理器視頻流引擎( Ultra-fine TM HISP VP )，通過該 HISPVP 實現硬件 Demosaic , 調整，自動曝光，增益調節，一鍵單擊白平衡，影像色品調整，飽和度調整，伽馬校正，亮度調節，對比度調整， Bayer 格式圖像轉 RAW 數據供最終以 8/12bit 輸出。 HISPVP 將傳統的本應由計算機 CPU 處理的轉移到了硬件處理，大大提升了相機的傳輸速度，降低了 CPU 的占用率。
利用 USB3.0 數據傳輸技術實現數據傳輸，視頻傳輸快速而而穩定。
E3ISPM系列顯微相機分辨率橫跨 150 萬~ 4500 萬，圖像傳輸速度快。
E3ISPM系列顯微相機隨機提供高級視頻與圖像處理應用軟件 ToupView/ToupLite ；提供 Windows/ Linux/OSX 多平臺 SDK ；支持原生 C/C++, C#/VB.Net, Directshow, Twain API 。
E3ISPM系列顯微相機的基本特性：
- 采用Sony Exmor CMOS背照式傳感器的C接口CMOS USB3.0相機；
- 采用並列A / D轉換技術實現超低噪聲、低功耗；
- 實時8/12位切換，任意ROI尺寸；
- 鋅鋁合金精密CNC外殼；
- USB3.0接口確保高傳輸速率；
- Ultra-Fine硬件ISP視頻流引擎確保顏色精準再現與快速(對2100萬像素相機，速度達17幀/每秒)；
- 隨相機提供高級視頻與圖像處理應用軟件ToupView/ToupLite；
- 提供Windows/Linux/macOS/Android多平臺標準SDK；
|
其他硬件參數 |
|
|---|---|
|
光譜響應范圍 |
380-650nm (有紅外截止濾光片情況下) |
|
白平衡 |
ROI 白平衡/手動Temp-Tint調整 |
|
色彩還原技術 |
Ultra-Fine硬件ISP視頻處理引擎 |
|
捕獲與控制API |
Windows/Linux/macOS/Android多平臺SDK(原生C/C++, C#/VB.NET, Python, Java, DirectShow, Twain等) |
|
位深度 |
8 Bit / 12 Bit |
|
記錄方式 |
圖像和視頻 |
|
致冷方式* |
自然冷卻 |
|
相機工作環境 |
|
|
工作溫度（攝氏度） |
-10~ 50 |
|
貯存溫度（攝氏度） |
-20~ 60 |
|
工作濕度 |
30~80%RH |
|
貯存濕度 |
10~60%RH |
|
供電電源 |
相機通過USB3.0接口供電(兼容USB2.0) |
|
軟件運行環境 |
|
|
操作系統 |
Microsoft® Windows® XP/ Vista / 7 / 8 /10 /11(32 & 64 位) |
|
計算機配置 |
CPU:Intel Core 2 2.8GHz 或更高 |
|
內存:2GB或更大 |
|
|
USB接口: USB3.0高速接口或USB2.0接口 |
|
|
顯示器:17”或以上 |
|
|
CD-ROM |
|
E3ISPM 系列相機可用于普通明場或弱光或熒光光場顯微圖像的拍攝。

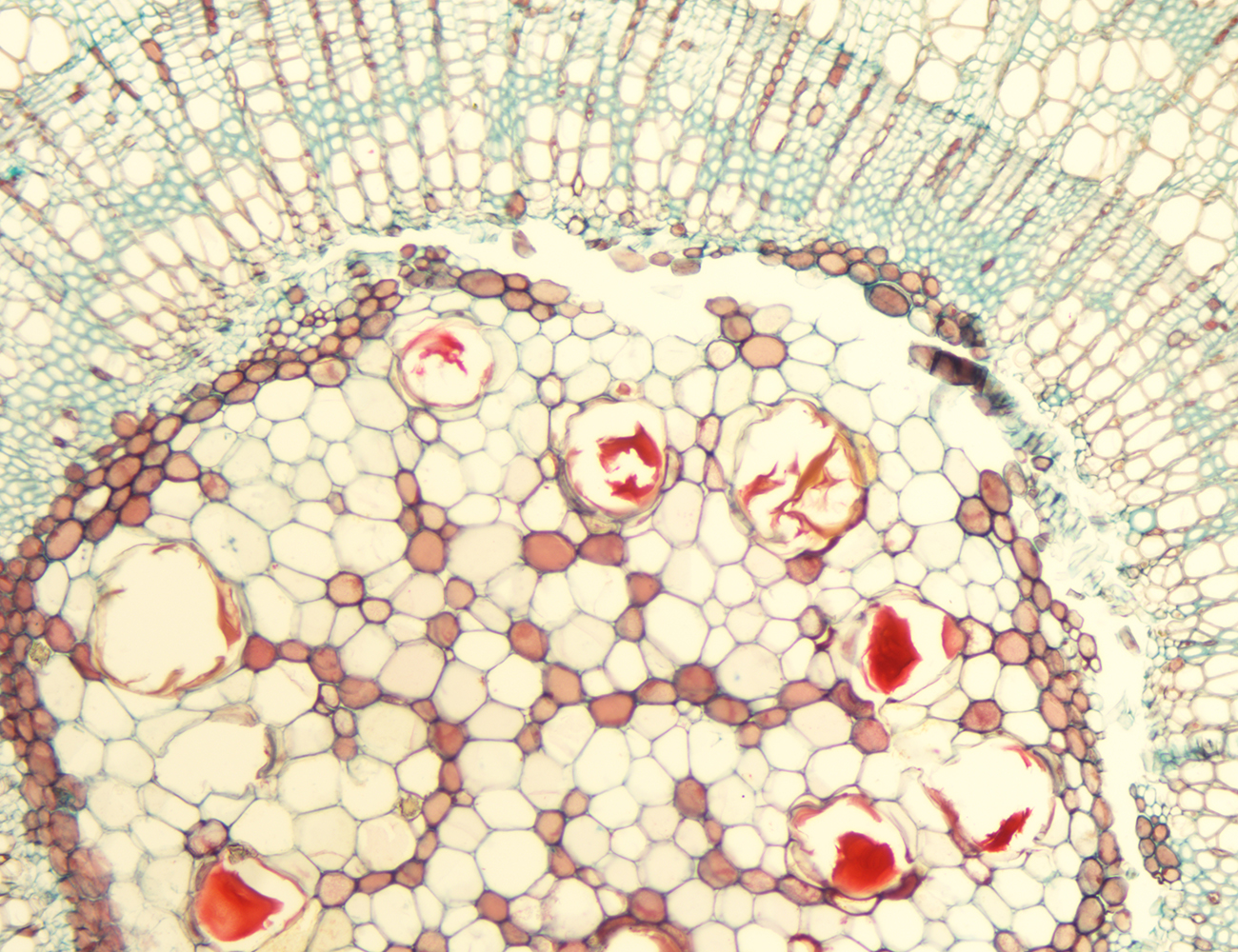

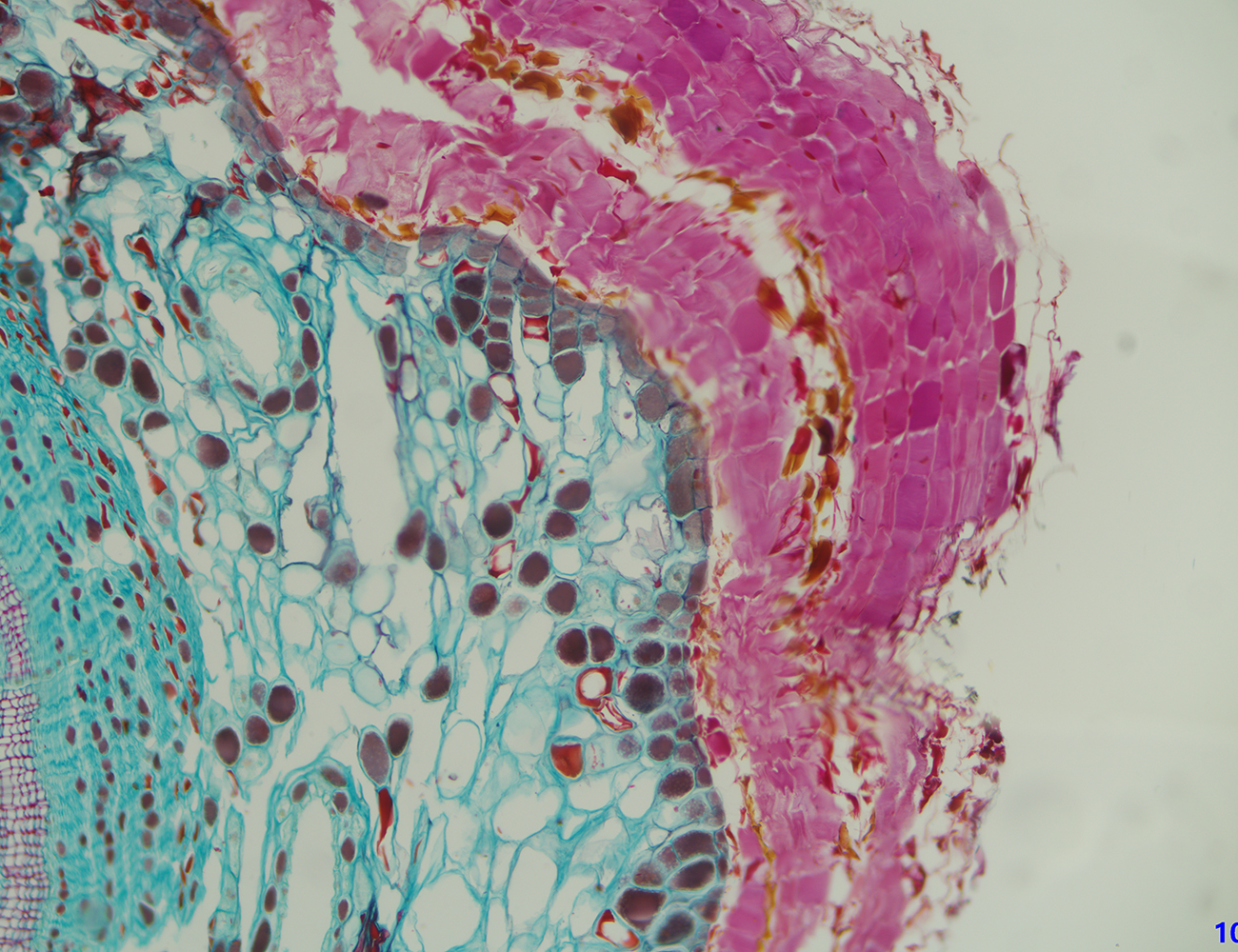

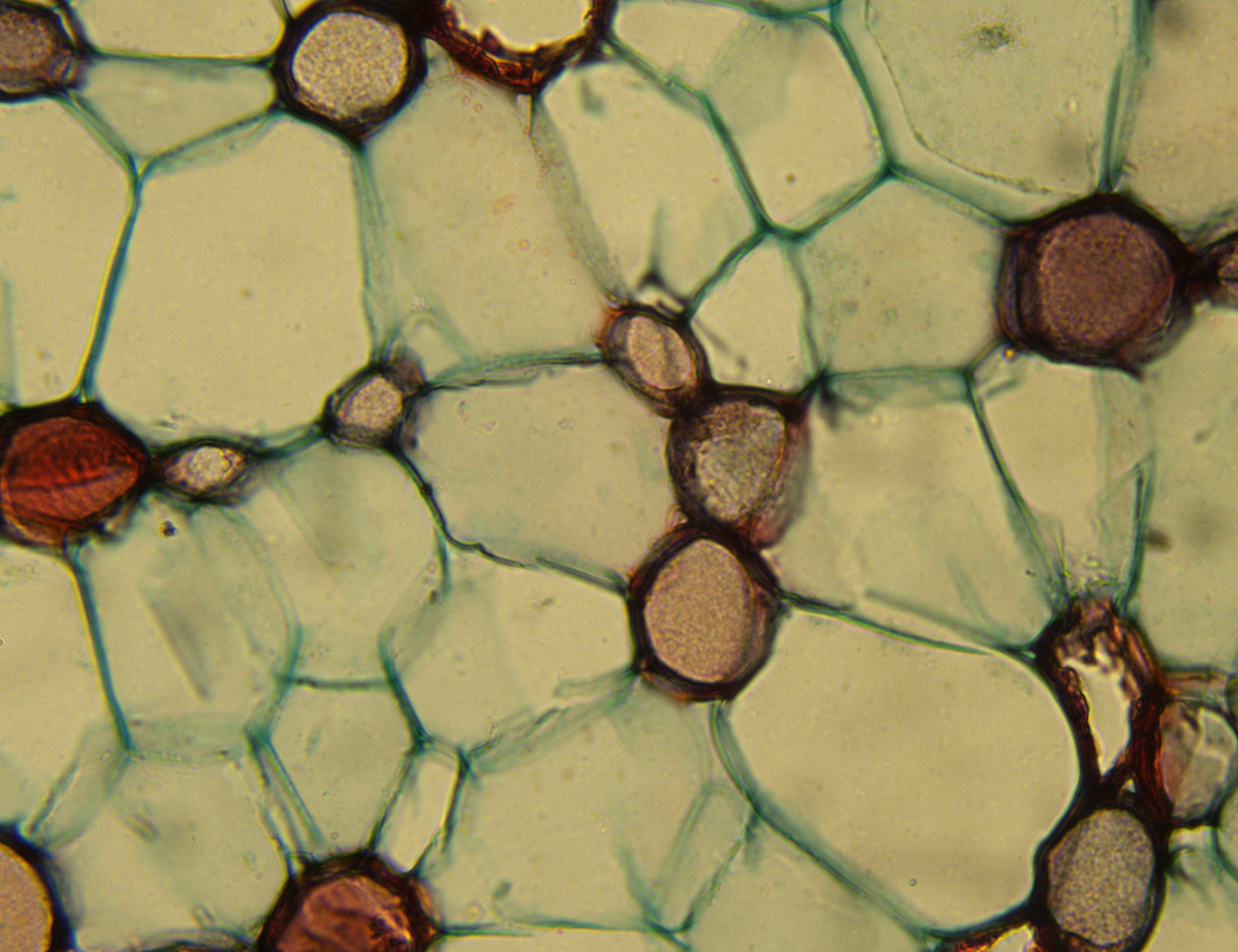

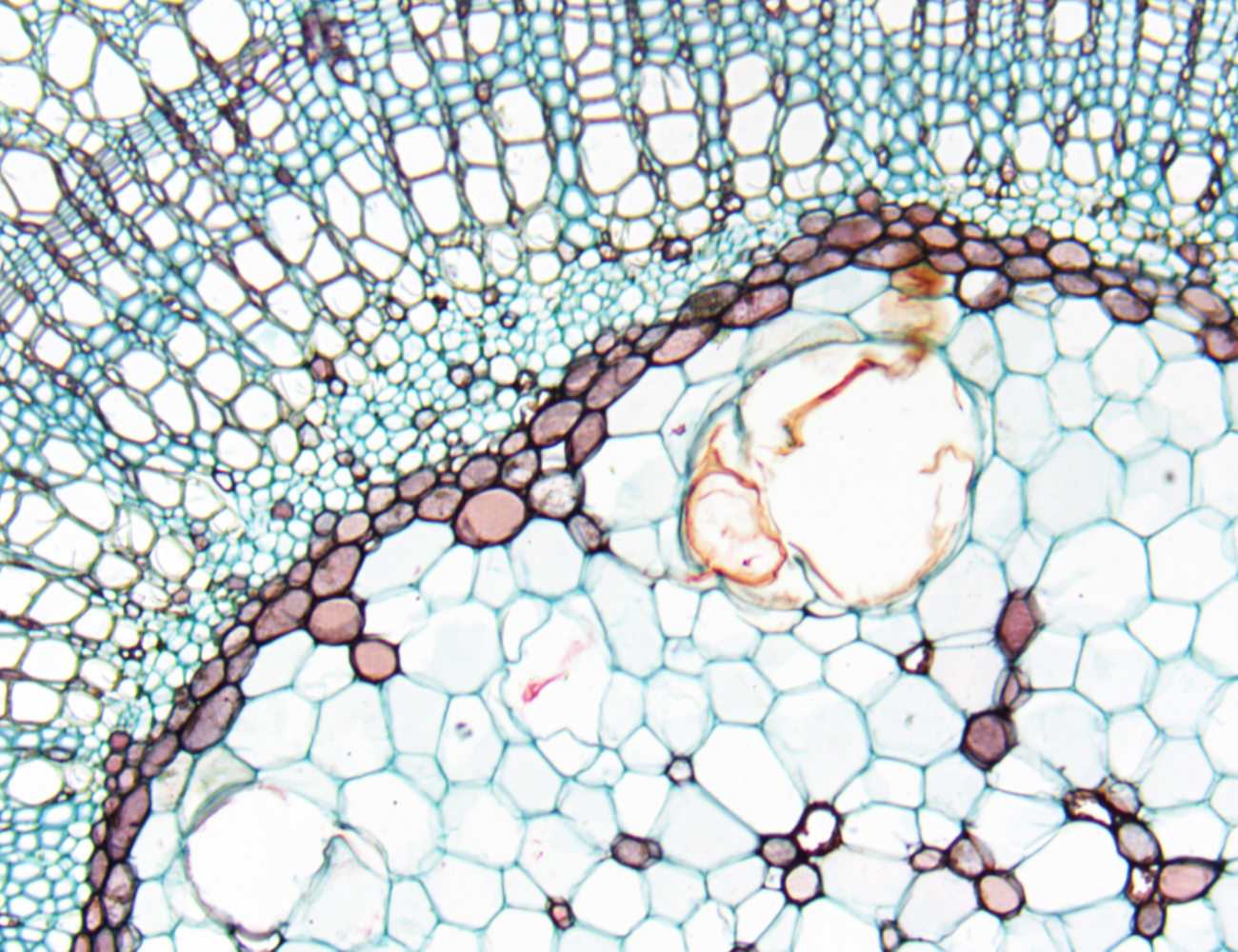

應用實例
外形尺寸

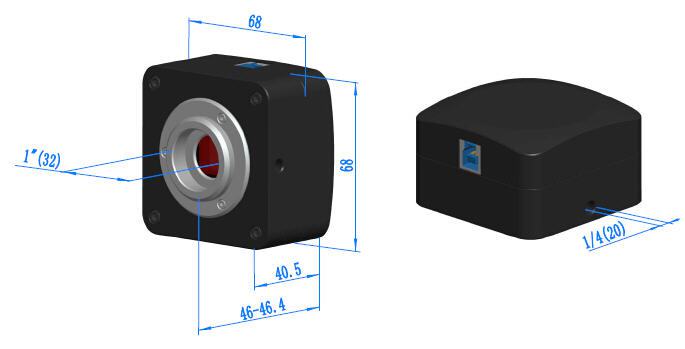

E3ISPM 系列相機外形尺寸示意圖。相機殼體由堅硬鋅鋁合金經CNC機械加工而成，美觀大方。相機傳感器的前端安裝有高品質的IR-CUT或雙AR膜，主要起到濾除成像中的紅外光波，同時保護相機傳感器作用。相比其他品牌相機，圖譜光電的相機無運動部件以確保相機堅固可靠、經久耐用，同時不存在由于運動部件抖動而引發的成像模糊。
E3ISPM系列相機外形尺寸示意圖
E3ISPM 系列相機裝箱清單
|
標準裝箱清單 |
|||
|---|---|---|---|
|
A |
包裝箱規格：L:52cm W:32cm H:33cm(20pcs, 12~17Kg/紙箱)，上圖中未給出 |
||
|
B |
包裝盒規格：L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) |
||
|
C |
E3ISPM系列相機 |
||
|
D |
高速USB3.0 A公到B公鍍金頭數據線/2.0m |
||
|
E |
CD (驅動以及應用軟件, Ø12cm) |
||
|
可選附件 |
|||
|
F |
可調焦式目鏡筒適配器 |
Dia.23.2mm目鏡筒轉C接口 (請根據你的相機與顯微鏡選擇其中之一) |
108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
|
Dia.31.75mm目鏡筒轉C接口 (請根據你的相機與望遠鏡選擇其中之一) |
108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100 |
||
|
G |
固定式目鏡筒適配器 |
Dia.23.2mm目鏡筒轉C接口 (請根據你的相機與顯微鏡選擇其中之一) |
108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
|
Dia.31.75mm目鏡筒轉C接口 (請根據你的相機與望遠鏡選擇其中之一) |
108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100 |
||
|
注意： 對F和G選項, 請先確定你的相機型號(C接口，顯微鏡相機或望遠鏡相機), 圖譜光電的工程師會根據你的應用幫助你選定合適的顯微鏡或望遠鏡適配器； |
|||
|
H |
108015(Dia.23.2mm to 30.0mm環)/用于直徑30mm目鏡筒轉接環 |
||
|
I |
108016(Dia.23.2mm to 30.5mm環)/用于直徑30.5mm目鏡筒轉接環 |
||
|
J |
108017(Dia.23.2mm to 31.75mm環)/用于直徑31.75目鏡筒轉接環 |
||
|
K |
測微尺 |
106011/TS-M1(X=0.01mm/100Div.) 106012/TS-M2(X,Y=0.01mm/100Div.) 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
訂購代碼
傳感器型號與尺寸
像素(μm)
G光靈敏度
暗電流
FPS/分辨率
采樣平均
曝光時間
E3ISPM45000KPA
IP145000A(2021)
45M/IMX294(C)
1.4“ (18.93x13.00)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616
30.0@4088x2808
8.1@7408x5556
33.0@4088x2808
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1344x720
1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)
0.1ms~15s
E3ISPM45000KPB
IP145000B(2022)
45M/IMX492(C,RS)
1.4“ (18.93x13.00)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616(C)
30.0@4080x2808(M)
8.1@7408x5556(C)
33.0@3696x2778(M)
10.4@8176x4320(C)
34.7@4096x2160(M)
62.5@2048x1080(M)
86.5@1344x720(M)
1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)
0.1ms~15s
E3ISPM32000KPA
IP132000A(2021)
32M/IMX294(C)
1.15“ (12.96x12.96)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@5600x5600
30.0@2800x2800
30.0@1400x1400
1x1
2x2
4x4
0.1ms~15s
E3ISPM25000KPA
IP125000A(20220808)
25M/IMX511(C)
1/2.3 “ (5.519x5.519)
1.12x1.12
96.3mv with 1/30s
0.1mv with 1/30s
12@4928x4928
46@2464x2464
100@1648x1648
1x1
2x2
3x3
0.013ms~15s
E3ISPM21000KPA
IP121000A(2020)
21M/IMX269(C)
4/3 “(17.4x13.0)
3.3 x3.3
399mv with 1/30s
0.1mv with 1/30s
17@5280x3954
17@3952x3952
56@2640x1976
67@1760x1316
192@584x438
1x1
1x1
2x2
3x3
9x9
0.1ms~15s
E3ISPM20400KPA
IP120400A
20230326
20.4M/IMX541(C,GS)
1.1 “(12.32x12.32)
2.74 x2.74
1574mv with 1/30s
0.15mv with 1/30s
17.5@4496x4496
64.4@2240x2240
64.4@1120x1120
1x1
2x2
4x4
0.03ms~15s
E3ISPM20000KPA
IP120000A
20M/IMX183(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
15@5440x3648
50@2736x1824
60@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM20000KPD
20M/IMX283(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
15@5440x3648
50@2736x1824
60@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM20000KPC
IP120000C(2021)
20M/IMX183(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
20@5440x3648
48@2736x1824
58@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM18000KPA
IP118001A
18M/SONY Special(C)
1/2.2 “(5.86x4.46)
1.2 x1.2
130mv with 1/30s
0.1mv with 1/30s
17@4880x3720
40@2448x1836
50@1728x1296
1x1
2x2
3x3
0.1ms~15s
E3ISPM15600KPA
IP115600A
15.6M/SONY Special (C)
1.1 “(13.0x13.0)
3.3 x3.3
399mv with 1/30s
0.1mv with 1/30s
17@3952x3952
56@1976x1976
67@1316x1316
1x1
2x2
3x3
0.1ms~15s
E3ISPM12400KPA
IP112400A
20230326
12.4M/IMX545(C,GS)
1/1.1 “(11.22x8.22)
2.74 x2.74
1337mv with 1/30s
0.15mv with 1/30s
28.2@4096x3000
100.9@2048x1500
100.9@1024x750
1x1
2x2
4x4
0.03ms~15s
E3ISPM12300KPA
IP112300A
12.3M/IMX304(C,GS)
1.1”(14.13x10.35)
3.45x3.45
1146mv with 1/30s
0.1mv with 1/30s
23.4@4096x3000
46.3@2048x1500
1x1
1x1
0.244ms~15s
E3ISPM12000KPA
IP112000A
12M/IMX226(C)
1/1.7“(7.40x5.55)
1.85x1.85
280mv with 1/30s
0.1mv with 1/30s
25@4000x3000
50@2048x1080
1x1
2x2
0.1ms~15s
E3ISPM12000KPB
IP112000B(2022)
12M/IMX577(C)
1/2“(6.29x4.71)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
30@4056x3040
60@2028x1520
120@1014x760
1x1
2x2
4x4
0.1ms~5s
E3ISPM12000KPC
IP112000C(20230717)
12M/IMX676(C)
1/1.6“(7.07x7.07)
2.0x2.0
3637mv with 12 bit converted value(HCG)
0.15mv with 1/30s
27@3536x3536
60@1768x1768
1x1
2x2
0.013ms~15s
E3ISPM09000KPA
IP109000A
9.0M/IMX305(C,GS)
1“ (14.13x7.45)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
34@4096x2160
60@2048x1080
1x1
1x1
0.1ms~15s
E3ISPM09000KPB
IP109000B
9.0M/IMX533(C)
1“ (11.31x11.28)
3.76x3.76
535mv with 1/30s
0.04mv with 1/30s
40@3008x3000
123@1488x1500
186@992x998
1x1
2x2
3x3
0.1ms~15s
E3ISPM08300KPA
IP108300A
8.3M/IMX274(C)
1/2.5”(6.22x3.50)
1.62x1.62
236mv with 1/30s
0.1mv with 1/30s
32@3840x2160
65@1920x1080
1x1
2x2
0.244ms~15s
E3ISPM08300KPB
IP108300B
8.3M/IMX334(C)
1/1.8”(7.68x4.32)
2.0x2.0
505mv with 1/30s
0.1mv with 1/30s
35@3840x2160
60@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPC
IP108300C
8.3M/IMX485(C)
1/1.2”(11.14x6.26)
2.9x2.9
2188mv with 1/30s
0.15mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPD
IP108300D(2022)
8.3M/IMX585(C)
1/1.2”(11.14x6.26)
2.9x2.9
5970(mV/lx/s)
0.13mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPE
IP108300E(2022)
8.3M/IMX678(C)
1/1.8”(7.68x4.32)
2.0x2.0
3541(mV/lx/s)
0.15mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08000KPA
IP108000A
8.0M/IMX294(C)
1.15 “(13.00x13.00)
4.63 x4.63
419mv with 1/30s
0.12mv with 1/30s
30@2808x2808(14bit)
139@1392x1392
139@696x696
1x1
2x2
4x4
0.1ms~15s
E3ISPM06300KPA
IP106300A
6.3M/IMX178(C,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
30@3072 x2048
38@1536x 1024
1x1
2x2
0.1ms~15s
E3ISPM06300KPB
IP106300B
6.3M/IMX178(C,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
59@3072 x2048
59@1536x 1024
1x1
2x2
0.02ms~15s
E3ISPM05100KPA
IP105100A
20230326
5.1M/IMX547(C,GS)
1/1.8“ (6.71x5.61)
2.74x2.74
1337mv with 1/30s
0.15mv with 1/30s
63@2448x2048
208.4@1224x1024
1x1
2x2
0.03ms~15s
E3ISPM05000KPA
IP105000A
5.0M/IMX264(C, GS)
2/3” (8.45x7.07)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
35@2448x2048
50@1224x1024
1x1
1x1
0.1ms~15s
E3ISPM03100KPA
IP103100A
3.1M/IMX265(C, GS)
1/1.8“ (7.07x5.30)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
53@2048x1536
85@1024x768
1x1
1x1
0.1ms~15s
E3ISPM03100KPB
IP103100B
3.1M/IMX123(C)
1/2.8“ (5.12x3.84)
2.5x2.5
600mv with 1/30s
0.15mv with 1/30s
50@2048x1536
50@1920x1080
1x1
1x1
0.1ms~15s
E3ISPM02100KPA
IP102100A(2021)
2.1M/IMX482(C)
1/1.2”(11.14x6.26)
5.8x5.8
8935mv with 1/30s
0.6mv with 1/30s
96@1920x1080
1x1
14us~15s
E3ISPM02000KPA
IP102000A
2M/IMX385(C)
1/2“ (7.2x4.05)
3.75x3.75
2350mv with 1/30s
0.15mv with 1/30s
125@1920x1080
1x1
0.1ms~15s
E3ISPM01500KPA
IP101500A
1.5M/IMX273(C, GS)
1/2.9“ (4.968x3.726)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
164@1440x1080
320@720x540
1x1
2x2
0.1ms~15s
