訂購代碼
|
傳感器型號與尺寸
|
像素(μm)
|
G光靈敏度
暗電流
|
FPS/分辨率
|
采樣平均
|
曝光時間
|
|

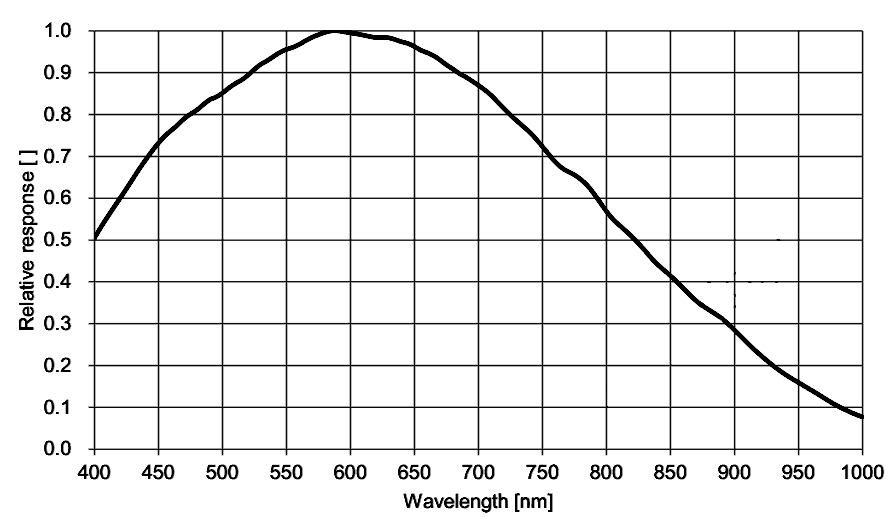

IUA390KMA
|
0.39IMX287LLR(M,GS)
1/2.9“ (4.97x3.73)
|
6.9x6.9
|
7320mv with 1/30s
0.76mv with 1/30s
|
101.5fps@720×540
|
1x1
|
6us~15s
|
|
IUA503KMA
|
0.5M/IMX426LLJ(M,GS)
1/1.7“ (7.2x5.58)
|
9.0x9.0
|
8100mv with 1/30s
0.3mv with 1/30s
|
79.8fps@800×620
|
1x1
|
6us~15s
|
|
IUA503KMB
|
0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.2x5.58)
|
9.0x9.0
|
8100mv with 1/30s
0.3mv with 1/30s
|
79.8fps@800×620
|
1x1
|
6us~15s
|
|
IUA1500KMA
|
1.5M/IMX273LLR(C,GS)
1/2.9“ (4.97x3.73)
|
3.45×3.45
|
1830mv with 1/30s
0.15mv with 1/30s
|
235.5fps@1440×1080
523fps@720×540
|
1x1
1x1
|
15us~15s
|
|
IUA1500KPA
|
1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97x3.73)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
235.5fps@1440×1080
523fps@720×540
|
1x1
1x1
|
15us~15s
|
|
IUA1700KMA
|
1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
8100mv with 1/30s
0.3mv with 1/30s
|
98.6fps@1600×1100
|
1x1
|
6us~15s
|
|
IUA1700KPA
|
1.7M/IMX432LQJ(C,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
4910mv with 1/30s
0.3mv with 1/30s
|
98.6fps@1600×1100
|
1x1
|
6us~15s
|
|
IUA1700KMB
|
1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
8100mv with 1/30s
0.3mv with 1/30s
|
210fps@1600×1100
|
1x1
|
6us~15s
|
|
IUA1700KPB
|
1.7M/IMX425LQJ(C,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
4910mv with 1/30s
0.3mv with 1/30s
|
210fps@1600×1100
|
1x1
|
6us~15s
|
|
IUA2300KMA
|
2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1650mv with 1/30s
0.15mv with 1/30s
|
164.5fps@1920×1200
|
1x1
|
15us~15s
|
|
IUA2300KPA
|
2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1016mv with 1/30s
0.15mv with 1/30s
|
164.5fps@1920×1200
|
1x1
|
15us~15s
|
|
IUA2300KMB
|
2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1650mv with 1/30s
0.15mv with 1/30s
|
30fps@1920×1200
|
1x1
|
42us~15s
|
|
IUA2300KPB
|
2.3M/IMX249LQJ(C,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1016mv with 1/30s
0.15mv with 1/30s
|
30fps@1920×1200
|
1x1
|
42us~15s
|
|
IUA2800KMA
|
2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)
|
4.5x4.5
|
3354mv with 1/30s
0.15mv with 1/30s
|
121fps@1936×1464
425fps@968×732
|
1x1
1x1
|
6us~15s
|
|
IUA2800KPA
|
2.8M/IMX421LQJ(C,GS)
2/3“ (8.71x6.59)
|
4.5x4.5
|
2058mv with 1/30s
0.15mv with 1/30s
|
121fps@1936×1464
425fps@968×732
|
1x1
1x1
|
6us~15s
|
|
IUA5000KMA
|
5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)
|
3.45×3.45
|
1830mv with 1/30s
0.15mv with 1/30s
|
35.6fps@2448×2048
87.6fps@1224×1024
|
1x1
1x1
|
15us~15s
|
|
IUA5000KPA
|
5.0M/IMX264LQR(C,GS)
2/3“ (8.45x7.07)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
35.6fps@2448×2048
87.6fps@1224×1024
|
1x1
1x1
|
15us~15s
|
|
IUA5100KMA
|
5.1M/ IMX547-AAMJ-C(M,GS)
1/1.8“(6.71x5.61)
|
2.74x2.74
|
2252mv with 1/30s
0.15mv with 1/30s
|
63fps@2448×2048
208.4fps@1224×1024
|
1x1
2x2
|
30us~15s
|
|
IUA5100KPA
|
5.1M/ IMX547-AAQJ-C(C,GS)
1/1.8“(6.71x5.61)
|
2.74x2.74
|
1337mv with 1/30s
0.15mv with 1/30s
|
63fps@2448×2048
159fps@1224×1024
|
1x1
2x2
|
30us~15s
|
|
IUA6300KMA
|
6.3M/IMX178LLJ(M,RS)
1/1.8“ (7.37x4.92)
|
2.4x2.4
|
760mv with 1/30s
0.15mv with 1/30s
|
59.9fps@3072×2048
59.9fps@1536×1024
|
1x1
2x2
|
17us~15s
|
|
IUA6300KPA
|
6.3M/IMX178LQJ(C,RS)
1/1.8“ (7.37x4.92)
|
2.4x2.4
|
425mv with 1/30s
0.15mv with 1/30s
|
59.8fps@3072×2048
59.5fps@1536×1024
|
1x1
2x2
|
17us~15s
|
|
IUA7100KMA
|
7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)
|
4.5x4.5
|
3354mv with 1/30s
0.15mv with 1/30s
|
51.3fps@3200×2200
133.8fps@1584×1100
|
1x1
1x1
|
6us~15s
|
|
IUA7100KPA
|
7.1M/IMX428LQJ(C,GS)
1.1“ (14.4x9.9)
|
4.5x4.5
|
2058mv with 1/30s
0.15mv with 1/30s
|
51.4fps@3200×2200
133.8fps@1584×1100
|
1x1
1x1
|
6us~15s
|
|
IUA8000KMB
|
8.0M/IMX546-AAMJ(M,GS)
2/3“ (7.78x7.78)
|
2.74x2.74
|
2649mv/lx/s
0.25mv with 1/30s
|
41fps@2840x2840
118fps@1420x1420
|
1x1
1x1
|
30us~15s
|
|
IUA8000KPB
|
8.0M/IMX546-AAQJ(C,GS)
2/3“ (7.78x7.78)
|
2.74x2.74
|
1574mv/lx/s
0.15mv with 1/30s
|
41fps@2840x2840
118fps@1420x1420
|
1x1
1x1
|
30us~15s
|
|
IUA8300KPA
|
8.3M/IMX485LQJ-C(C,RS)
1/1.2“ (11.14x6.26)
|
2.9x2.9
|
2188mv with 1/30s
0.15mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
IUA8300KMB
|
8.3M/IMX585-AAMJ1-C(M,RS)
1/1.2“ (11.14x6.26)
|
2.9x2.9
|
19120mv with 1/30s
0.13mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
IUA8300KPB
|
8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14x6.26)
|
2.9x2.9
|
5970mv with 1/30s
0.13mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
IUA8300KME
|
8.3M/IMX678-AAMR1-C(M, RS)
1/1.8“ (7.68x4.32)
|
2.0x2.0
|
11288mv with 1/30s
0.15mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
IUA8300KPE
|
8.3M/IMX678-AAQR1-C(C, RS)
1/1.8“ (7.68x4.32)
|
2.0x2.0
|
3541mv with 1/30s
0.15mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
IUA10300KPA
|
10.3M/IMX294(C,RS)
4/3 “(9.56x6.5)
|
2.315x2.315
|
419mv with 1/30s
0.12mv with 1/30s
|
30.0@4128x2808
38.5 @4096x2160
59.8@2048x1080
87.2@1360x720
8 Bit / 14 Bit
|
1x1
1x1
2x2
3x3
|
150us~15s
|
|
IUA12000KPA
|
12M/IMX676-AACR1-C(C,RS)
1/1.6“ (7.07x7.07)
|
2.0x2.0
|
3637mv
0.15mv with 1/30s
|
27@3536x3536
60@1768x1768
|
1x1
2x2
|
30us~15s
|
|
IUA12300KMA
|
12.3M/IMX545-AAMJ-C(M,GS)
1/1.1“(11.22x8.22)
|
2.74x2.74
|
2252mv with 1/30s
0.15mv with 1/30s
|
28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA12300KPA
|
12.3M/IMX545-AAQJ-C(C, GS)
1/1.1“(11.22x8.22)
|
2.74x2.74
|
1337mv with 1/30s
0.15mv with 1/30s
|
28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA12300KMB
|
12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)
|
3.45×3.45
|
1830mv with 1/30s
0.15mv with 1/30s
|
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA12300KPB
|
12.3M/IMX304LQR-C(C, GS)
1.1“(14.13x10.35)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA20000KMA
|
20.0M/IMX183CLK(M,RS)
1“ (13.06x8.84)
|
2.4x2.4
|
777mv with 1/30s
0.2mv with 1/30s
|
19.0fps@5440×3684
49.9fps@2736×1824
59.5fps@1824×1216
|
1x1
2x2
3x3
|
53us~15s
|
|
IUA20000KPA
|
20.0M/IMX183CQK(C,RS)
1“ (13.06x8.84)
|
2.4x2.4
|
462mv with 1/30s
0.2mv with 1/30s
|
19.0fps@5440×3684
48.8fps@2736×1824
59.4fps@1824×1216
|
1x1
2x2
3x3
|
53us~15s
|
|
IUA20400KMA
|
20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)
|
2.74x2.74
|
2649mv with 1/30s
0.15mv with 1/30s
|
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA20400KPA
|
20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32x12.32)
|
2.74x2.74
|
1574mv with 1/30s
0.15mv with 1/30s
|
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA24500KMA
|
24.5M/IMX540-AAMJ-C(M,GS)
1.2“(14.58x12.60)
|
2.74x2.74
|
2649mv with 1/30s
0.15mv with 1/30s
|
14.7fps@5320×4600
54.3fps@2660×2300
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA24500KPA
|
24.5M/IMX540-AAQJ-C(C,GS)
1.2“(14.58x12.60)
|
2.74x2.74
|
1574mv with 1/30s
0.15mv with 1/30s
|
14.7fps@5320×4600
54.4fps@2660×2300
|
1x1
2x2
4x4
|
30us~15s
|
|
IUA25000KMA
|
25M/GMAX0505(M, GS)
1.1“ (12.8x12.8)
|
2.5x2.5
|
QE@500nm: 65.8%
2.4e-/pixel/s
|
13fps@5120×5120
27fps@2560×2560
54fps@1280×1280
|
1x1
2x2
4x4
|
15us~15s
|
|
IUA25000KPA
|
25M/GMAX0505(C, GS)
1.1“ (12.8x12.8)
|
2.5x2.5
|
QE@520nm: 58.0%
2.4e-/pixel/s
|
13fps@5120×5120
27fps@2560×2560
54fps@1280×1280
|
1x1
2x2
4x4
|
15us~15s
|
|
IUA45000KMA
|
45M/IMX492LLJ-C(M,RS)
1.4“ (19.11x13.00)
|
2.315x2.315
|
176mv with 1/30s
0.03mv with 1/30s
|
8.1@8176x5616
30.0@4080x2808
8.1@7408x5556
33.0@3696x2778
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1360x720
|
1x1
2x2
1x1
2x2
1x1
2x2
3x3
4x4
|
100us~15s
|
|

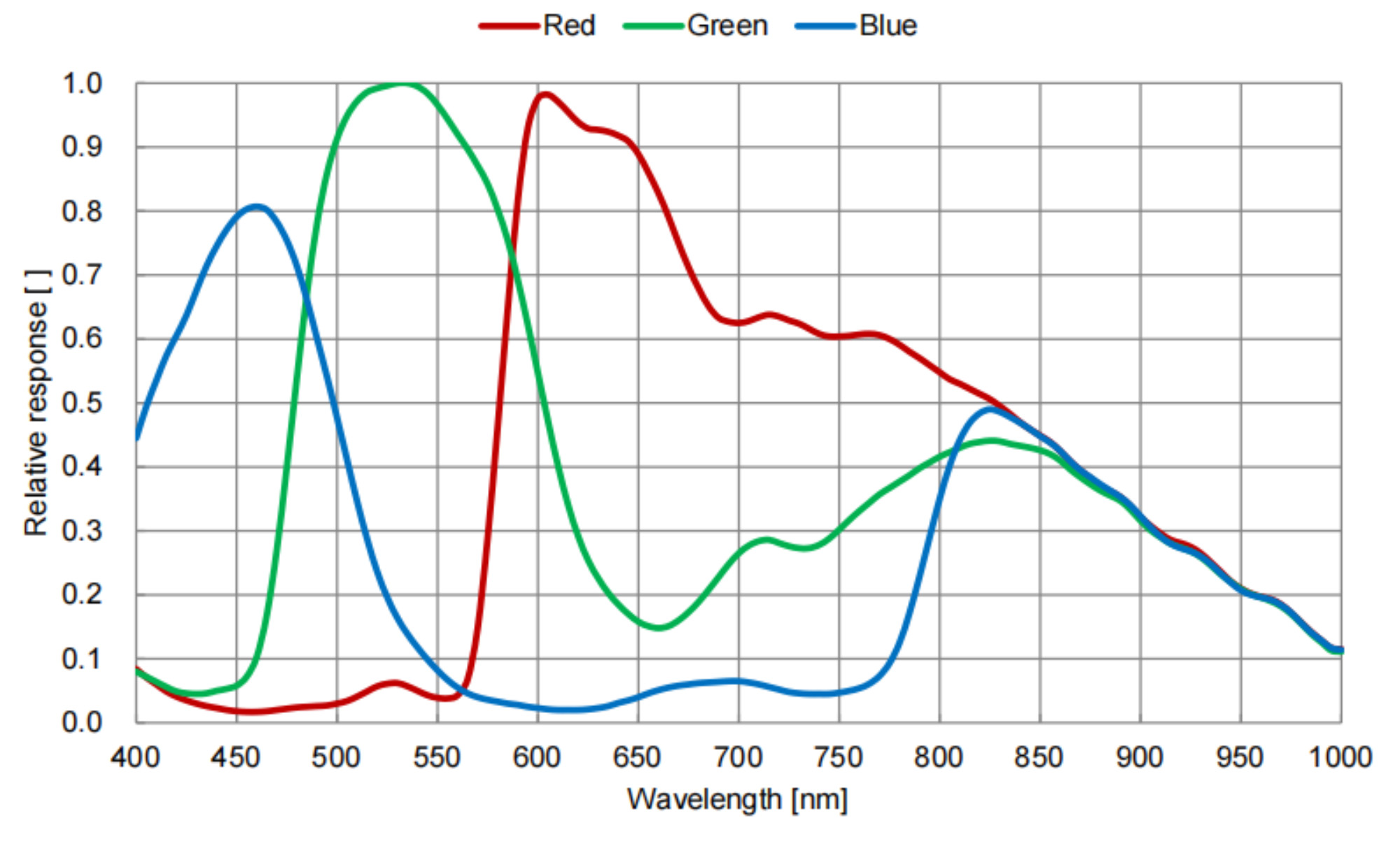

IUA45000KPB
|
45M/IMX492LQJ-C(C,RS)
1.4“ (19.11x13.00)
|
2.315x2.315
|
176mv with 1/30s
0.03mv with 1/30s
|
8.1@8176x5616
8.1@7408x5556
10.4@8176x4320
|
1x1
2x2
1x1
2x2
1x1
2x2
3x3
4x4
|
100us~15s
|
|
IUA-特別波段（UV， NIR，9款）
|
|
IUA2100KPA
(NIR)
|
2.1M/IMX462LQR(C,RS,NIR)
1/2.8“ (5.57x3.13)
|
2.9x2.9
|
2376mv with 1/30s
0.15mv with 1/30s
|
120.3fps@1920x1080
|
1x1
|
11us~15s
|
|
IUA4100KPA
(NIR)
|
4.1M/IMX464LQR(C,RS,NIR)
1/1.8“ (7.8x4.41)
|
2.9x2.9
|
2376mv with 1/30s
0.15mv with 1/30s
|
90fps@2688x1520
|
1x1
|
11us~15s
|
|
IUA500KMA
(GPixel UV)
|
0.5M/GLUX1605BSI(M,UV,RS)
1“(12.8x9.6)
|
16x16
|
6.4x108(e-/((W/m2).s))
QE91%@550nm
50(e-/s/pix)
|
60fps@800×600
60fps@400×300
|
1x1
2x2
|
27us~60s
|
|
IUA1300KMA
(GPixel UV)
|
1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)
|
9.76x9.76
|
2.57x108(e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)
|
30fps@1280×1024
30fps@640×512
|
1x1
2x2
|
63us~60s
|
|
IUA4200KMA
(GPixel NIR)
|
4.2M/GSENSE2020e(M,NIR,RS)
1.2“(13.31x13.31)
|
6.5x6.5
|
8.1x107(e-/((W/m2).s))
QE73%@595nm
13(e-/s/pix)
|
45fps@2048×2048
45fps@1024×1024
|
1x1
2x2
|
21us~60s
|
|
IUA4200KPA
(GPixel NIR)
|
4.2M/GSENSE2020s(C,NIR,RS)
1.2“(13.31x13.31)
|
6.5x6.5
|
8.1x107(e-/((W/m2).s))
QE64%@595nm
13(e-/s/pix)
|
45fps@2032×2046
45fps@1008×1022
|
1x1
2x2
|
50us~3600s
|
|
IUA4200KMB
(GPixel UV)
|
4.2M/GSENSE2020BSI(M,UV,RS)
1.2“(13.31x13.31)
|
6.5x6.5
|
1.1x108(e-/((W/m2).s))
QE93.7%@550nm
80(e-/s/pix)
|
32fps@2048×2048
32fps@1024×1024
|
1x1
2x2
|
12us~60s
|
|

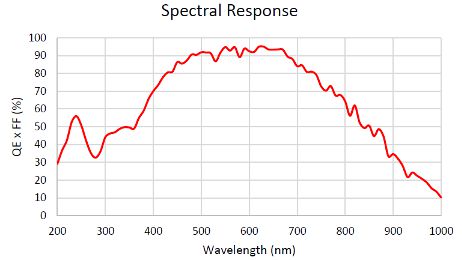

IUA4200KME
(GPixel UV)
|
4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53x22.53)
|
11.0x11.0
|
3.25x108(e-/((W/m2).s))
QE95.3%@560nm
345(e-/s/pix)
|
37fps@2048×2048
37fps@1024×1024
|
1x1
2x2
|
21us~60s
|
|
IUA8000KMA
(GS-UV)
|
8.0M/IMX487-AAMJ(M,UV,GS)
2/3“ (7.78x7.78)
|
2.74x2.74
|
145mv with 1/30s
0.15mv with 1/30s
|
45fps@2840×2840
198fps@1420×1420
|
1x1
2x2
|
30us~15s
|
訂購代碼
傳感器型號與尺寸
像素(μm)
G光靈敏度
暗電流
FPS/分辨率
采樣平均
曝光時間
IUA390KMA
0.39IMX287LLR(M,GS)
1/2.9“ (4.97x3.73)
6.9x6.9
7320mv with 1/30s
0.76mv with 1/30s
101.5fps@720×540
1x1
6us~15s
IUA503KMA
0.5M/IMX426LLJ(M,GS)
1/1.7“ (7.2x5.58)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
79.8fps@800×620
1x1
6us~15s
IUA503KMB
0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.2x5.58)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
79.8fps@800×620
1x1
6us~15s
IUA1500KMA
1.5M/IMX273LLR(C,GS)
1/2.9“ (4.97x3.73)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
235.5fps@1440×1080
523fps@720×540
1x1
1x1
15us~15s
IUA1500KPA
1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97x3.73)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
235.5fps@1440×1080
523fps@720×540
1x1
1x1
15us~15s
IUA1700KMA
1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
98.6fps@1600×1100
1x1
6us~15s
IUA1700KPA
1.7M/IMX432LQJ(C,GS)
1.1“ (14.4x9.9)
9.0x9.0
4910mv with 1/30s
0.3mv with 1/30s
98.6fps@1600×1100
1x1
6us~15s
IUA1700KMB
1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
210fps@1600×1100
1x1
6us~15s
IUA1700KPB
1.7M/IMX425LQJ(C,GS)
1.1“ (14.4x9.9)
9.0x9.0
4910mv with 1/30s
0.3mv with 1/30s
210fps@1600×1100
1x1
6us~15s
IUA2300KMA
2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
164.5fps@1920×1200
1x1
15us~15s
IUA2300KPA
2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1016mv with 1/30s
0.15mv with 1/30s
164.5fps@1920×1200
1x1
15us~15s
IUA2300KMB
2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
30fps@1920×1200
1x1
42us~15s
IUA2300KPB
2.3M/IMX249LQJ(C,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1016mv with 1/30s
0.15mv with 1/30s
30fps@1920×1200
1x1
42us~15s
IUA2800KMA
2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
121fps@1936×1464
425fps@968×732
1x1
1x1
6us~15s
IUA2800KPA
2.8M/IMX421LQJ(C,GS)
2/3“ (8.71x6.59)
4.5x4.5
2058mv with 1/30s
0.15mv with 1/30s
121fps@1936×1464
425fps@968×732
1x1
1x1
6us~15s
IUA5000KMA
5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×1024
1x1
1x1
15us~15s
IUA5000KPA
5.0M/IMX264LQR(C,GS)
2/3“ (8.45x7.07)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×1024
1x1
1x1
15us~15s
IUA5100KMA
5.1M/ IMX547-AAMJ-C(M,GS)
1/1.8“(6.71x5.61)
2.74x2.74
2252mv with 1/30s
0.15mv with 1/30s
63fps@2448×2048
208.4fps@1224×1024
1x1
2x2
30us~15s
IUA5100KPA
5.1M/ IMX547-AAQJ-C(C,GS)
1/1.8“(6.71x5.61)
2.74x2.74
1337mv with 1/30s
0.15mv with 1/30s
63fps@2448×2048
159fps@1224×1024
1x1
2x2
30us~15s
IUA6300KMA
6.3M/IMX178LLJ(M,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
760mv with 1/30s
0.15mv with 1/30s
59.9fps@3072×2048
59.9fps@1536×1024
1x1
2x2
17us~15s
IUA6300KPA
6.3M/IMX178LQJ(C,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
59.8fps@3072×2048
59.5fps@1536×1024
1x1
2x2
17us~15s
IUA7100KMA
7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
51.3fps@3200×2200
133.8fps@1584×1100
1x1
1x1
6us~15s
IUA7100KPA
7.1M/IMX428LQJ(C,GS)
1.1“ (14.4x9.9)
4.5x4.5
2058mv with 1/30s
0.15mv with 1/30s
51.4fps@3200×2200
133.8fps@1584×1100
1x1
1x1
6us~15s
IUA8000KMB
8.0M/IMX546-AAMJ(M,GS)
2/3“ (7.78x7.78)
2.74x2.74
2649mv/lx/s
0.25mv with 1/30s
41fps@2840x2840
118fps@1420x1420
1x1
1x1
30us~15s
IUA8000KPB
8.0M/IMX546-AAQJ(C,GS)
2/3“ (7.78x7.78)
2.74x2.74
1574mv/lx/s
0.15mv with 1/30s
41fps@2840x2840
118fps@1420x1420
1x1
1x1
30us~15s
IUA8300KPA
8.3M/IMX485LQJ-C(C,RS)
1/1.2“ (11.14x6.26)
2.9x2.9
2188mv with 1/30s
0.15mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
1x1
30us~15s
IUA8300KMB
8.3M/IMX585-AAMJ1-C(M,RS)
1/1.2“ (11.14x6.26)
2.9x2.9
19120mv with 1/30s
0.13mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
1x1
30us~15s
IUA8300KPB
8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14x6.26)
2.9x2.9
5970mv with 1/30s
0.13mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
1x1
30us~15s
IUA8300KME
8.3M/IMX678-AAMR1-C(M, RS)
1/1.8“ (7.68x4.32)
2.0x2.0
11288mv with 1/30s
0.15mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
1x1
30us~15s
IUA8300KPE
8.3M/IMX678-AAQR1-C(C, RS)
1/1.8“ (7.68x4.32)
2.0x2.0
3541mv with 1/30s
0.15mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
1x1
30us~15s
IUA10300KPA
10.3M/IMX294(C,RS)
4/3 “(9.56x6.5)
2.315x2.315
419mv with 1/30s
0.12mv with 1/30s
30.0@4128x2808
38.5 @4096x2160
59.8@2048x1080
87.2@1360x720
8 Bit / 14 Bit
1x1
1x1
2x2
3x3
150us~15s
IUA12000KPA
12M/IMX676-AACR1-C(C,RS)
1/1.6“ (7.07x7.07)
2.0x2.0
3637mv
0.15mv with 1/30s
27@3536x3536
60@1768x1768
1x1
2x2
30us~15s
IUA12300KMA
12.3M/IMX545-AAMJ-C(M,GS)
1/1.1“(11.22x8.22)
2.74x2.74
2252mv with 1/30s
0.15mv with 1/30s
28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750
1x1
2x2
4x4
30us~15s
IUA12300KPA
12.3M/IMX545-AAQJ-C(C, GS)
1/1.1“(11.22x8.22)
2.74x2.74
1337mv with 1/30s
0.15mv with 1/30s
28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750
1x1
2x2
4x4
30us~15s
IUA12300KMB
12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
1x1
2x2
4x4
30us~15s
IUA12300KPB
12.3M/IMX304LQR-C(C, GS)
1.1“(14.13x10.35)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
1x1
2x2
4x4
30us~15s
IUA20000KMA
20.0M/IMX183CLK(M,RS)
1“ (13.06x8.84)
2.4x2.4
777mv with 1/30s
0.2mv with 1/30s
19.0fps@5440×3684
49.9fps@2736×1824
59.5fps@1824×1216
1x1
2x2
3x3
53us~15s
IUA20000KPA
20.0M/IMX183CQK(C,RS)
1“ (13.06x8.84)
2.4x2.4
462mv with 1/30s
0.2mv with 1/30s
19.0fps@5440×3684
48.8fps@2736×1824
59.4fps@1824×1216
1x1
2x2
3x3
53us~15s
IUA20400KMA
20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)
2.74x2.74
2649mv with 1/30s
0.15mv with 1/30s
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
1x1
2x2
4x4
30us~15s
IUA20400KPA
20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32x12.32)
2.74x2.74
1574mv with 1/30s
0.15mv with 1/30s
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
1x1
2x2
4x4
30us~15s
IUA24500KMA
24.5M/IMX540-AAMJ-C(M,GS)
1.2“(14.58x12.60)
2.74x2.74
2649mv with 1/30s
0.15mv with 1/30s
14.7fps@5320×4600
54.3fps@2660×2300
1x1
2x2
4x4
30us~15s
IUA24500KPA
24.5M/IMX540-AAQJ-C(C,GS)
1.2“(14.58x12.60)
2.74x2.74
1574mv with 1/30s
0.15mv with 1/30s
14.7fps@5320×4600
54.4fps@2660×2300
1x1
2x2
4x4
30us~15s
IUA25000KMA
25M/GMAX0505(M, GS)
1.1“ (12.8x12.8)
2.5x2.5
QE@500nm: 65.8%
2.4e-/pixel/s
13fps@5120×5120
27fps@2560×2560
54fps@1280×1280
1x1
2x2
4x4
15us~15s
IUA25000KPA
25M/GMAX0505(C, GS)
1.1“ (12.8x12.8)
2.5x2.5
QE@520nm: 58.0%
2.4e-/pixel/s
13fps@5120×5120
27fps@2560×2560
54fps@1280×1280
1x1
2x2
4x4
15us~15s
IUA45000KMA
45M/IMX492LLJ-C(M,RS)
1.4“ (19.11x13.00)
2.315x2.315
176mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616
30.0@4080x2808
8.1@7408x5556
33.0@3696x2778
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1360x720
1x1
2x2
1x1
2x2
1x1
2x2
3x3
4x4
100us~15s
IUA45000KPB
45M/IMX492LQJ-C(C,RS)
1.4“ (19.11x13.00)
2.315x2.315
176mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616
8.1@7408x5556
10.4@8176x4320
1x1
2x2
1x1
2x2
1x1
2x2
3x3
4x4
100us~15s
IUA-特別波段（UV， NIR，9款）
IUA2100KPA
(NIR)
2.1M/IMX462LQR(C,RS,NIR)
1/2.8“ (5.57x3.13)
2.9x2.9
2376mv with 1/30s
0.15mv with 1/30s
120.3fps@1920x1080
1x1
11us~15s
IUA4100KPA
(NIR)
4.1M/IMX464LQR(C,RS,NIR)
1/1.8“ (7.8x4.41)
2.9x2.9
2376mv with 1/30s
0.15mv with 1/30s
90fps@2688x1520
1x1
11us~15s
IUA500KMA
(GPixel UV)
0.5M/GLUX1605BSI(M,UV,RS)
1“(12.8x9.6)
16x16
6.4x108(e-/((W/m2).s))
QE91%@550nm
50(e-/s/pix)
60fps@800×600
60fps@400×300
1x1
2x2
27us~60s
IUA1300KMA
(GPixel UV)
1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)
9.76x9.76
2.57x108(e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)
30fps@1280×1024
30fps@640×512
1x1
2x2
63us~60s
IUA4200KMA
(GPixel NIR)
4.2M/GSENSE2020e(M,NIR,RS)
1.2“(13.31x13.31)
6.5x6.5
8.1x107(e-/((W/m2).s))
QE73%@595nm
13(e-/s/pix)
45fps@2048×2048
45fps@1024×1024
1x1
2x2
21us~60s
IUA4200KPA
(GPixel NIR)
4.2M/GSENSE2020s(C,NIR,RS)
1.2“(13.31x13.31)
6.5x6.5
8.1x107(e-/((W/m2).s))
QE64%@595nm
13(e-/s/pix)
45fps@2032×2046
45fps@1008×1022
1x1
2x2
50us~3600s
IUA4200KMB
(GPixel UV)
4.2M/GSENSE2020BSI(M,UV,RS)
1.2“(13.31x13.31)
6.5x6.5
1.1x108(e-/((W/m2).s))
QE93.7%@550nm
80(e-/s/pix)
32fps@2048×2048
32fps@1024×1024
1x1
2x2
12us~60s
IUA4200KME
(GPixel UV)
4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53x22.53)
11.0x11.0
3.25x108(e-/((W/m2).s))
QE95.3%@560nm
345(e-/s/pix)
37fps@2048×2048
37fps@1024×1024
1x1
2x2
21us~60s
IUA8000KMA
(GS-UV)
8.0M/IMX487-AAMJ(M,UV,GS)
2/3“ (7.78x7.78)
2.74x2.74
145mv with 1/30s
0.15mv with 1/30s
45fps@2840×2840
198fps@1420×1420
1x1
2x2
30us~15s
*C：彩色；M：黑白；UV：紫外；RS：卷簾快門；GS：全局快門；NIR：近紅外提升。
* UV相機都可去玻璃
